Place of Origin: Hubei, China (Mainland) Brand Name: Zhongke Model Number: HSPA20-F Screen size: 8.4 inch Screen resolution: 1024*768 Extended Interface: USB2.0*4,10M/100M LAN*1,VGA*1 Power supply: 24V AC adapter, 14.8V lithium battery, with 2 adapters and 2 batteries Working time: 4 hours (one battery-powered) Weight: 4.8Kg Dimensions: 295 * 215 * 120 (mm) Encoder interface: +5 V TTL level Image scanning: A / C / D / S / L scan Full Name: Zhongke HSPA20-F Portable Phased Array Ultrasonic Flaw Detector
Packaging & Delivery

Packaging Details: Military industrial plastic box

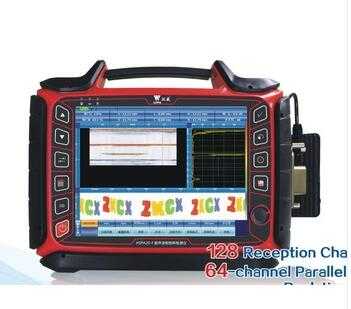

Zhongke HSPA20-F Portable Phased Array Ultrasonic Flaw Detector
Delivery Detail: 2-4 weeks
Product Description
Zhongke HSPA20-F Portable Phased Array Ultrasonic Flaw Detector

Our company's 1st Phased Array flaw detector was designed and manufactured in 2010, after years user feedback and technology improvement, the HS PA20-F Phased Array flaw detector has became the high performance and easy operate model. it's TFT screen with high image resolution (1024*768 pixel, image can be shown more dedicate, flaw size and location can be shown with higher accuracy), the display refresh rate is 60Hz, ensures the image reflects the scanning position; HS PA20-F Phased Array flaw detector with 64 elements transmit and receive signal synchronously, it can real time display A-scan, C-scan, D-scan, S-scan and L-scan image, and it has max.300V transmit voltage (the emission power higher than domestic and foreign products).

Features:
● With high image resolution (1024*768 pixel, image can be shown more dedicate, flaw size and location can be shown with higher accuracy)
● With 60Hz display refresh rate, ensures the image reflects the scanning position
● With 64 elements transmit and receive signal synchronously, real time display A-scan, C-scan, D-scan, S-scan and L-scan image.
● With whole point DAC curve function, make DAC curve with unlimited point and compensation
● Optimal time-delay accuracy up to 1ns, make better focusing performance and better imaging, with dynamic Focusing function
● With max.300V transmit voltage (the emission power higher than domestic and foreign products)
●With high gain adjustment range (digital gain:30dB; analog gain:80 dB)
● With a high degree gate and sound path gate, automatic alarm when the defect is detected
● Support module extension, it can be extended with 4 pairs of TOFD channel and PE multi-channel.
● With simulation of various work-piece inspection (suitable for Plate weld, “T” type weld, corner weld, Pipe weld, forge piece and plates inspection)
● Support full record of encoder scanning
● With light-weight and easy carry.

Application:
-Weld inspection
-Aerospace industry
-Nuclear Industry
-Shipbuilding industry
-Arsenal
-Electric Power Industry
-Petroleum Industry
-Chemical industry
