Description
- Place of Origin: Guangdong, China (Mainland)
- Brand Name: NOAH
- Model Number: HSSP
- Usage: Electronic
- Phase: Three
- Coil Structure: Toroidal
- Coil Number: Autotransformer
- Rated capacity: 4000-16000kva
- Frequency: 50Hz/60Hz
- Voltage: 6.6-35kv
- Installation: Indoor/Outdoor
- Insulation level: Class H/F
- Coil material: Copper/Aluminum coil
- Core: CRGO Silicon Steel Core
- Cooling: AN/AF

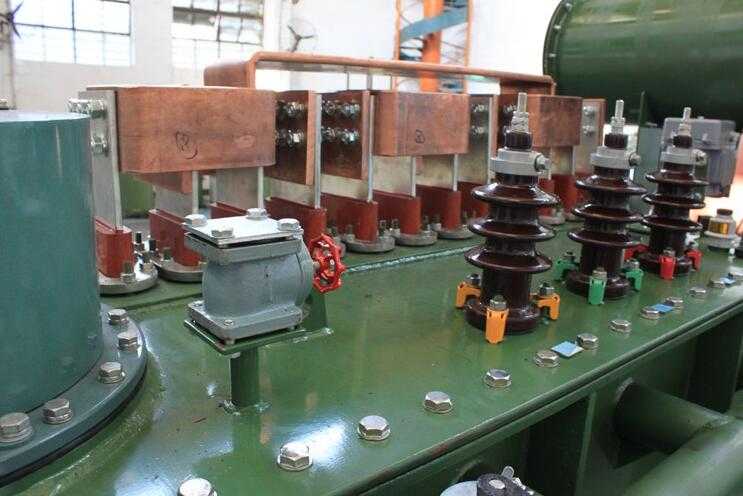

Furnace series include electric arc furnace transformer, ladle refining furnace transformer, electrostatic furnace transformer, submerged arc furnace with (Permalloy, calcium carbide furnace, phosphorus furnace, etc.) transformers, frequency induction furnace transformers of various AC furnace transformer. Industrial furnace transformer means refining furnace transformer power supply transformer, which is based on the load characteristics and operating characteristics of various furnace designed for dedicated transformer.
Product Parameter
|
Model
No.
|
Rated Capacity(KVA)
|
Vector Group
|
Primary Voltage(KV)
|
Secondary Voltage(KV)
|
Voltage Regulation Level (A)
|
Rated Secondary Current
|
Attached Series Reactor
|
Short Circuit Impedance(%)
|
Weight(kg)
|
Dimension
L*W*H
mm
|
|
Body
|
Oil
|
Total Weight(kg)
|
|
HSSP-4000/10
|
4000
|
Dd0,Yd11
|
10
|
240;138;121;210
|
4
|
9630
|
340
|
8.5
|
4600
|
2600
|
11800
|
3400*1700*2600
|
|
HSSP-4000/35
|
4000
|
Dd0,Yd11
|
35
|
240;138;121;210
|
4
|
9626
|
340
|
8.5
|
5300
|
3300
|
13500
|
3600*1500*3100
|
|
HSSP-4200/10
|
4200
|
Dd0,Yd11
|
10
|
240;138;129;224;210;121
|
6
|
10112
|
360
|
8.5
|
4700
|
2600
|
12000
|
3400*1700*2600
|
|
HSSP-4200/35
|
4200
|
Dd0,Yd11
|
35
|
240;138;129;224;210;121
|
6
|
10107
|
360
|
8.5
|
5500
|
3400
|
13800
|
3600*1500*3100
|
|
HSSP-5000/10
|
5000
|
Dd0,Yd11
|
10
|
240;138;121;210
|
4
|
12028
|
430
|
8.5
|
5300
|
2800
|
13000
|
3400*1700*2700
|
|
HSSP-5000/35
|
5000
|
Dd0,Yd11
|
35
|
240;138;121;210
|
4
|
12032
|
430
|
8.5
|
6100
|
3600
|
14800
|
3800*2000*3200
|
|
HSSP-5500/10
|
5500
|
Dd0,Yd11
|
10
|
260;150;138;240;210;121
|
6
|
12208
|
450
|
8.5
|
6100
|
3400
|
14600
|
3700*2000*2800
|
|
HSSP-5500/35
|
5500
|
Dd0,Yd11
|
35
|
260;150;138;240;210;121
|
6
|
12218
|
450
|
8.5
|
6900
|
4200
|
16400
|
3800*2000*3400
|
|
HSSP-6300/10
|
6300
|
Dd0,Yd11
|
10
|
260;150;138;240;210;121
|
6
|
13983
|
360
|
7.5
|
6700
|
3600
|
15400
|
3600*1500*3000
|
|
HSSP-6300/35
|
6300
|
Dd0,Yd11
|
35
|
260;150;138;240;210;121
|
6
|
13991
|
360
|
7.5
|
7500
|
4300
|
17100
|
3800*2000*3400
|
|
HSSP-8000/10
|
8000
|
Dd0,Yd11
|
10
|
260;150;138;240;210;121
|
6
|
17749
|
460
|
7.5
|
8200
|
3800
|
17800
|
3600*1500*3000
|
|
HSSP-8000/35
|
8000
|
Dd0,Yd11
|
35
|
260;150;138;240;210;121
|
6
|
17759
|
460
|
7.5
|
9000
|
4700
|
19700
|
3900*2000*3200
|
|
HSSP-9000/10
|
9000
|
Dd0
|
10
|
280;260;240;220;200;180;160;140
|
8
|
18576
|
450
|
7.5
|
9900
|
4700
|
21700
|
4000*2000*3200
|
|
HSSP-9000/10
|
9000
|
Dd0
|
10
|
290;270;250;230;210;190;170;150
|
8
|
22603
|
450
|
7.5
|
10900
|
5000
|
23500
|
4100*2100*3200
|
|
HSSP-9000/10
|
9000
|
Dd0
|
10
|
340;320;300;280;260;240;220;200
|
8
|
18591
|
450
|
7.5
|
10100
|
4700
|
22000
|
4100*2000*3200
|
|
HSSP-9000/35
|
9000
|
Yd11
|
35
|
280;260;240;220;200;180;160;140
|
8
|
18551
|
450
|
7.5
|
11100
|
5700
|
24300
|
4300*2400*3600
|
|
HSSP-9000/35
|
9000
|
Yd11
|
35
|
290;270;250;230;210;190;170;150
|
8
|
22629
|
450
|
7.5
|
11900
|
5900
|
25700
|
4300*2400*3600
|
|
HSSP-9000/35
|
9000
|
Yd11
|
35
|
340;320;300;280;260;240;220;200
|
8
|
18576
|
450
|
7.5
|
11500
|
5800
|
|
|
Product Features
The core is made of quality grain-oriented electrical steel sheet, cut and assembled length-ways and breadth-ways, minimizing the burrs. The core is laminated with total mitering and multilevel stepping, enabling the product to run in low no-load loss, no-loss current and noises.
The coils are wound with high purity oxygen-free copper wire, utilizing quality insulators between turns, which make the coils to resist sudden short-circuit effectively. The inner coils are wound on the insulation bobbin directly, and all the coils have inner and outer bracing, all the bracing and pads are debugger to create even electric field, which is more reliable.
The tank wall adopts wide steel sheet,which will be folded into corrugated structure without splicing, minimizing the welding. Therefore it looks neat and simple with optimized mechanical strength, capable of withstanding the positive pressure stipulated in standards and mechanical strength test on vacuum degree.
Low loss, low noise, low temperature rise, high reliability , no leakage and no need for drying.
Furnace transforms are mainly applied in steel and copper smelting, calcium carbide, Permalloy , silicon compound refining and etc.
