ONAN/ONAF 50Hz/60Hz America combination transformer substation

The European prefabricated transformer combination, also known as European pad mount transformer, comprises high voltage and low voltage power distribution panels, distribution transformer and the housing. Usage:Power Phase:Three Coil Structure:Toroidal

Product Details Company Profile

Description

Place of Origin:	Guangdong China (Mainland)	Brand Name:	NOAH	Model Number:	Transformer Substation
Usage:	Power	Phase:	Three	Coil Structure:	Toroidal
Coil Number:	Autotransformer	Rated Capacity:	30-3000kva	Installation:	Indoor/Ourdoor
Insulation leve:	Class H/F	Rated voltage:	6.3KV-35kv	Cooling method:	Copper/Aluminum Coil
Coil material:	Copper/Aluminum Coil	Cooling:	ONAN/ONAF	Core:	Cold Rolled Grain Oriented Silicon Steel Sheet
Frequency:	50Hz/60Hz

Product Introduction

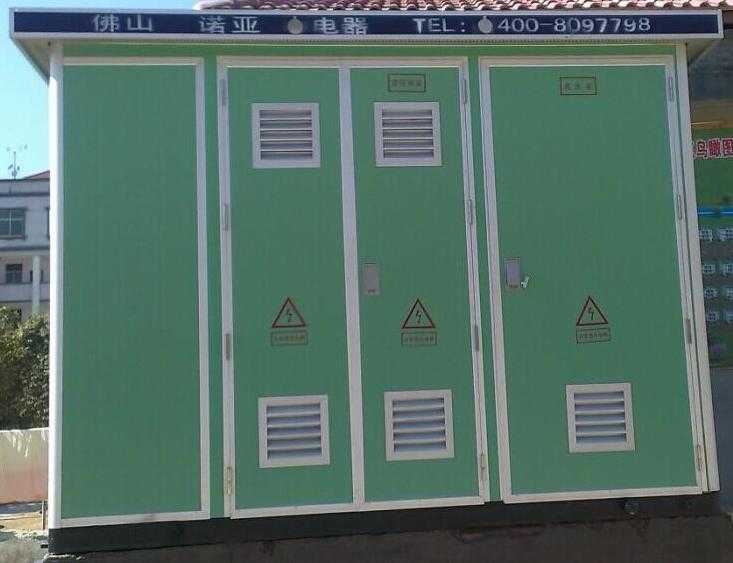

The European prefabricated transformer combination, also known as European pad mount transformer, comprises high voltage and low voltage power distribution panels, distribution transformer and the housing. As a new power distribution unit, compared with traditional civil work type ones, it excels.

Product Features

Thanks to its small size in dimension and area coverage, compact structure, easy transport, the lead time of infrastructure construction is shorten significantly and the cost is largely cut down. Meanwhile, pad mount transformer on site installation is simple; no man is needed to watch over it. Especially, it can be installed in the load center, playing important role in improving power supply efficiency, reducing power loss, increasing the supply reliability, as well as grid distribution re-engineering.

Pad mount transformer undertakes to transform, distribute, transmit and meter the electrical energy, to control and protect the system, as well as make communication.

The product meets the standards of GB17467-1998 High and Low Voltage Prefabricated Transformer and IEC1330.

Applicable for man-less on duty substation whose voltage range less than 35KV, with major capacity less than 2000 KVA, it is widely used in urban industrial substation, 10KV switch station, ring main system, rural grid 35KV substation and etc.

Product Installation

1. Altitude: Below 1000m;
2. Ambient Temperature: -30°C~40°C;
3. Related Humidity(RH): Below 95% (±25°C);
4. Wind Speed: Below 35m/s;
5. Horizontal acceleration of seism should be slower than 0.4m/s², Vertical acceleration should be slower than 0.2m/s²;
6. Should not have conductive dust, corrosion gas to metal & isolation material, or any dangerous gas which
will cause inflammation and explosion;
7. Installation site should avoid acute shaking, vertical gradient should below 30.
