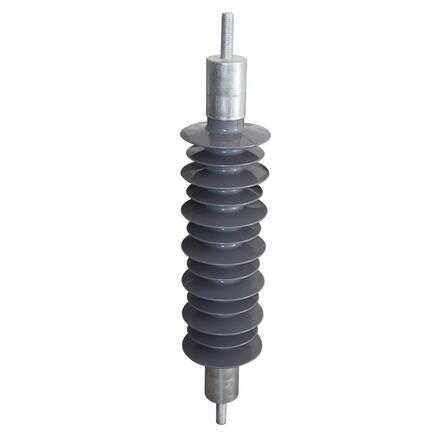

FQX3-25 60 Series Composite Electric-Railway Link Insulator

This product is suitable for electric-railway in complex operation conditions, and can effectively prevent flash accidents and decrease the times of clear and mainerenance. It can't be replaced by porcelain glass type because of the features of small volume.

Product Details Company Profile

Description

Model NO.: FQX3-25/60
Material: Composite Polymer
Color: Grey
Rated Voltage: 33kv
Origin: Zhejiang, China

Application: High-voltage
Certification: ISO9001
Brand: Ruily
Trademark: Ruily
HS Code: 8546900000

This product is suitable for electric-railway in complex operation conditions, and can effectively prevent flash accidents and decrease the times of clear and mainerenance. It can't be replaced by porcelain glass type because of the features of small volume.

Model Type	Rated Voltage	Rated Mechanical Load(KN)	Structure Height H. (mm)	Min Creepage Distance(mm)	Lightning Impulse Withstand Voltage(peak)/KV	P. F Wet Withstand Voltage(virtual value)(KV)
FQX1-25	25	60	650	1400	270	130
FQX2-25	25	60	840	1400	270	130
FQX3-25	25	60	930	1400	270	130
FQX4-25	25	60	645	1400	270	130
FQE1-25	25	60	760	1400	270	130
PQE2-25	25	60	806	1400	270	130
FQE3-25	25	60	836	1400	270	130
FQE4-25	25	60	695	1400	270	130
