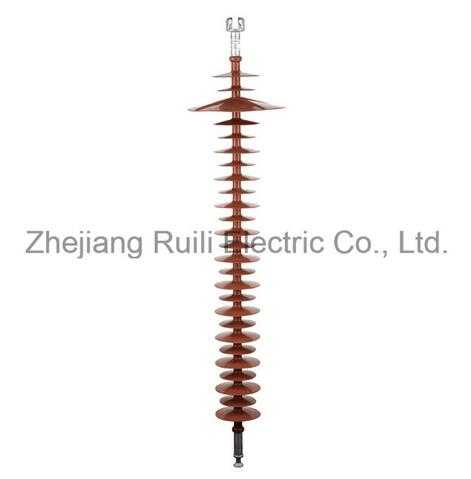

FXBW4-110 Series 110kv Composite Suspension Polymer Insulator

The suspension composite insulator is special for badly polluted areas,high mechanical tension load,long span and compact power line,and have features of light weight,small volume,unbreakable,anti-bend,high strength,high strength wrest resistarct and strong explosion protection.

Product Details Company Profile

Description

Model NO.: FXBW4-110
Material: Composite Polymer
Certification: ISO9001, SGS
Brand: Ruily
Trademark: Ruily
HS Code: 8546900000

Application: Insulators
Type: Solid
Color: Red
Maximum Voltage: >100kv
Origin: Zhejiang, China

Product Introduction:

The suspension composite insulator is special for badly polluted areas,high mechanical tension load,long span and compact power line,and have features of light weight,small volume,unbreakable,anti-bend,high strength,high strength wrest resistarct and strong explosion protection.

Main technical parameters:

Model Type	Rated Voltage	Rated Mechanical Load(KN)	Structure Height H. (mm)	Insulating Distance Li. (mm)	Min Creepage Distance(mm)	Lightning Impulse Withstand Voltage(peak)/KV	P. F Wet Withstand Voltage(virtual value)(KV)
FXBW4-12/70	12	70	370	200	480	75	42
FXBW4-12/100	12	100	405	200	480	75	42
FXBW4-24/70	24	70	550	370	850	185	75
FXBW4-24/100	24	100	590	370	850	185	75
FXBW4-35/70	35	70	650	450	1225	230	95
FXBW4-35/100	35	100	690	450	1225	230	95
FPBW4-66/70	66	70	900	710	1980	410	185
FXBW4-66/100	66	100	940	710	1980	410	185
FPBW4-110/70	110	70	1240	1000	3315	550	230
FPBW4-110/100	110	100	1240	1000	3315	550	230
FPBW4-220/100	220	100	2240	1900	6300	1000	395
FPBW4-220/160	220	160	2240	1900	6300	1000	395
FPBW4-330/100	330	100	2950	2600	9075	1425	570
FPBW4-330/160	330	160	2950	2600	9075	1425	570
FXBW4-500/160	500	160	4080	3730	12750	2250	740
