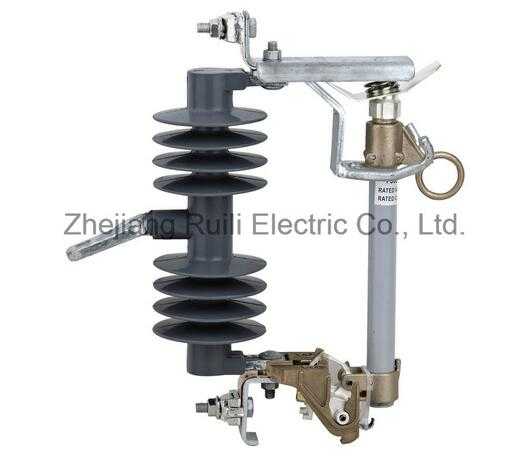

RLF-24 100 24kv Polymer High-Voltage Drop-out Fuse Cutout

Drop-out fuse cutout and load switching fuse cutout are outdoor high voltage protective device.To be connect incoming feeder of distribution transformer or distribution lines ,it mainly protects transformer or lines from short circuit and overload.

Product Details Company Profile

Description

Model NO.: RLF-24/100
Type: Circuit Breaker
Standard: IEC
Speed: Normal Type Circuit Breaker
Arc-Extinguishing Medium: Air
Certification: CE
Origin: Zhejiang, China

Breaking Capacity: Low Voltage Circuit Breakers
Usaga: High Voltage
Operation: Manual Type
Structure: Conventional Circuit Breaker
Function: Circuit-Breaker Failure Protection
Trademark: Ruily
HS Code: 8535100000

Drop-out fuse cutout and load switching fuse cutout are outdoor high voltage protective device.To be connect incoming feeder of distribution transformer or distribution lines ,it mainly protects transformer or lines from short circuit and overload,and on/off loading current,Drop-out fuse cutout is composed of insulator supports and fuse tube,static contacts is fixed on two sides of insulator support and moving contact is installed on two ends of fuse tube is composed of inside arc extinguishing tube,outer phenolic compound paper tube or epoxy glass tube load switching fuse cutout provides enforced plastic auxiliary contacts and arc extinguishing enclosure for switching on/off loading current.
