Model No: GW9-15

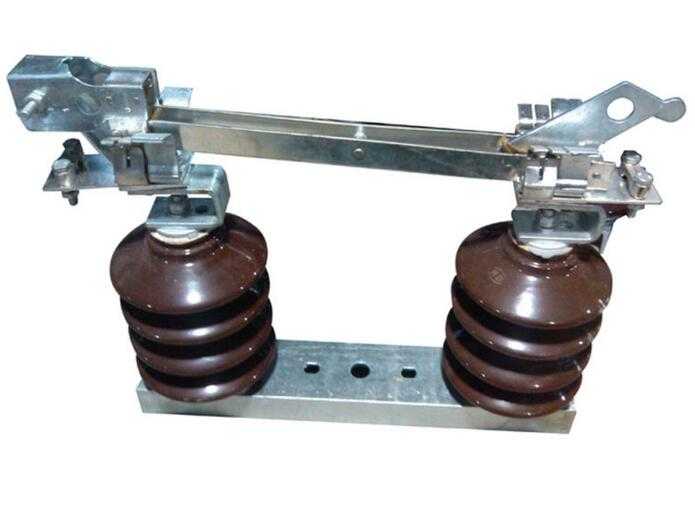

Type: GW9-15 Outdoor High Voltage Disconnector/ Isolator Switch

Disconnector switch is high voltage switch equipment of single phase AC50Hz. The product is suitable for power system with rated voltage 12kV to break power supply under circumstances of with voltage and nomload. The isolator is adopts isolated hook rod to operate.

Specification:
Rated voltage: 15KV
Rated current: 200/400/630/1250
Impulse Withstand voltage:
1). To earth: 105KV
2). Across the isolating distance: 120KV
Power-frequeny Wihstand voltage:
1). To earth: 45KV
2). Across the isolating distance: 50KV
