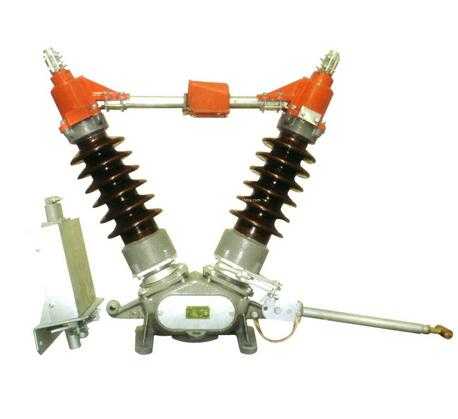

Gw5-40.5 Outdoor High Voltage Disconnector Isolator Switch

Disconnector switch is high voltage switch equipment of single phase AC50Hz. The product is suitable for power system with rated voltage 12kV to break power supply under circumstances of with voltage and nomload. The isolator is adopts isolated hook rod to operate.

Product Details Company Profile

Description

Model NO.: GW5-40.5
Structure: Three-column Disconnector
Operation: Electric Type
Movement Mode: Horizontal Rotary Type
Grounding: Single Ground
Run: Turn the Horizontal
Common Model: Gw5-40.5
Certification: ISO, Cnas,Cnal
Breaking Capacity: High Voltage Circuit Breakers
Arc-Extinguishing Medium: Air
Trademark: ZHON
Origin: China

Type: High-voltage
Installation: Outdoor High-voltage
Grounding Mode: Grounding
Number of Poles: Three Pole
Series: Single-Stage
Switching Mode: Single Throw-in
Structure of Operating: Pneumatic
Brand: Zhon
Speed: Normal Type Circuit Breaker
Function: Overcurrent Protection
Specification: 35KV Series
HS Code: 8535400000

Model No: GW5-40.5
Type: GW5-40.5 Outdoor High Voltage Disconnector/ Isolator Switch

Disconnector switch is high voltage switch equipment of single phase AC50Hz. The product is suitable for power system with rated voltage 12kV to break power supply under circumstances of with voltage and nomload. The isolator is adopts isolated hook rod to operate.

Specification:
Rated voltage: 40.5KV
Rated current: 630A
Impulse Withstand voltage:
1). To earth: 185KV
2). Across the isolating distance: 215KV
Power-frequeny Wihstand voltage:
1). To earth: 95KV
2). Across the isolating distance: 185KV
