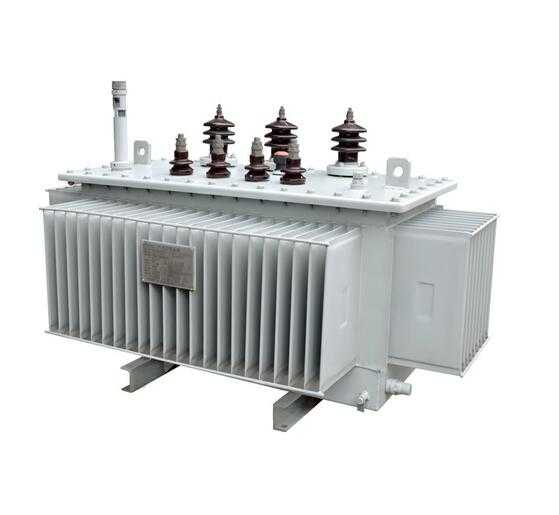

10kv Three-Phase Stereo Roll Iron Core Oil-Immersed Distribution Transformer

S13-M.RL series three-phase stereo transformer adopts the three-phase symmetrical three-dimensional structure instead of the traditional plane structure. Usage: Distribution Transformer; Shape of Core: Ring; Trademark: ZHEBIAN.

Product Details Company Profile

Description

Application: Power
Core: Core-type Transformer
Winding Type: Multi-winding Transformer
Usage: Distribution Transformer
Shape of Core: Ring
Trademark: ZHEBIAN

Phase: Three
Cooling Method: Oil-immersed Type Transformer
Certification: ISO9001-2000, ISO14001,Ohsas18001-2007
Frequency Characteristics: Power Frequency
Brand: Zhebian
Origin: China

1 Summary
S13-M.RL series three-phase stereo transformer adopts the three-phase symmetrical three-dimensional structure instead of the traditional plane structure. The product is completely symmetrical three-phase core magnetic circuit, the reluctance is greatly reduced, the excitation current and no-load loss is significantly reduced. It is a use of traditional materials, but the running noise is lower, the structure is more efficient and compact energy-saving transformer.

2 Standards
IEC60076,GB1094,GB/T25438,GB20052

3 Technical Specification
3.1 Technical specification of 10kV three-phase stereo roll iron core oil-immersed distribution transformer

Type	HV (kV)	Tapping Range of HV (%)	LV (kV)	Connection Symbol	No-load Loss (kW)	load Loss (kW)	No-load Current (%)	Short- circuit Impedance (%)	Total Mass (kg)	Overall Dimension (mm)
Type	HV (kV)	Tapping Range of HV (%)	LV (kV)	Connection Symbol	No-load Loss (kW)	load Loss (kW)	No-load Current (%)	Short- circuit Impedance (%)	Total Mass (kg)	L×W×H	Track
S13-M.RL-30/10	6 6.3 10 10.5 11	±5% (or) ±2×2.5%	0.4	Dyn11	0.08	0.63/0.6	0.3	4	330	800×500×850	400×400
S13-M.RL-50/10					0.1	0.91/0.87	0.24		380	820×550×850	400×400
S13-M.RL-63/10					0.11	1.09/1.04	0.23		410	835×580×850	400×400
S13-M.RL-80/10					0.13	1.31/1.25	0.22		430	840×600×880	400×450
S13-M.RL-100/10					0.15	1.58/1.5	0.21		460	860×600×890	400×450
S13-M.RL-125/10					0.17	1.89/1.8	0.2		590	1020×660×880	400×550
S13-M.RL-160/10					0.2	2.31/2.2	0.19		650	1035×660×950	550×550
S13-M.RL-200/10					0.24	2.73/2.6	0.18		710	1040×680×980	550×550
S13-M.RL-250/10					0.29	3.2/3.05	0.17		850	1140×740×1010	550×650
S13-M.RL-315/10					0.34	3.83/3.65	0.16		970	1160×760×1150	550×650
S13-M.RL-400/10					0.41	4.52/4.3	0.16		1130	1230×800×1200	550×750
S13-M.RL-500/10					0.48	5.41/5.15	0.16		1335	1320×900×1200	660×750
S13-M.RL-630/10					0.57	6.2	0.15	4.5	1630	1420×920×1230	660×850
S13-M.RL-800/10					0.7	7.5	0.15		1950	1480×1000×1285	660×850
S13-M.RL-1000/10					0.83	10.3	0.14		2205	1600×1100×1330	820×850
S13-M.RL-1250/10					0.97	12.0	0.13		2565	1655×1135×1375	820×850
S13-M.RL-1600/10					1.17	14.5	0.12		3100	1815×1260×1450	820×900
