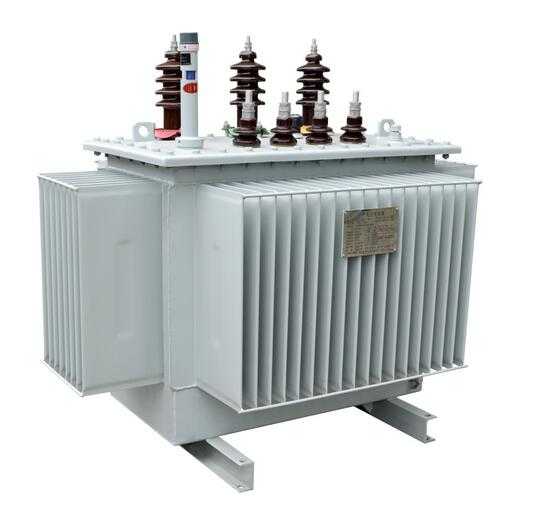

Ohsas18001-2007 10kv Two-winding Oil-Immersed Distribution Transformer

The oil-immersed distribution transformer meet the standard of IEC60076,GB1094,GB/T6451 and obtain the type test report of National transformer Quality supervision and Inspection Center. Usage: Distribution Transformer; Shape of Core: EI; Trademark: ZHEBIAN.

Product Details Company Profile

Description

Application: Power, Electronic
Core: Core-type Transformer
Winding Type: Two-winding Transformer
Usage: Distribution Transformer
Shape of Core: EI
Trademark: ZHEBIAN

Phase: Three
Cooling Method: Oil-immersed Type Transformer
Certification: ISO9001, ISO14001,Ohsas18001-2007
Frequency Characteristics: Power Frequency
Brand: Zhebian
Origin: China

1.Summary
The oil-immersed distribution transformer meet the standard of IEC60076,GB1094,GB/T6451 and obtain the type test report of National transformer Quality supervision and Inspection Center. It's an energy-saving product, passing PCCC energy-saving certificate.

2.Standards
IEC60076,GB1094,GB/T6451,GB20052
3.Technical Specification
Technical specification of 10kV oil-immersed distribution transformer

Type	HV (kV)	Tapping Range of HV (%)	LV (kV)	Connection Symbol	No-load Loss (kW)	load Loss (kW)	No-load Current (%)	Short- circuit Impedance (%)	Total Mass (kg)	Overall Dimension (mm)
Type	HV (kV)	Tapping Range of HV (%)	LV (kV)	Connection Symbol	No-load Loss (kW)	load Loss (kW)	No-load Current (%)	Short- circuit Impedance (%)	Total Mass (kg)	×× L×W×H	Track
S11-M-30/10	6 6.3 10 10.5 11	±5% (or) ±2×2.5%	0.4	Dyn11 Yyn0	0.1	0.63/0.6	2.3	4.0	270	735×695×865	400×400
S11-M-50/10					0.13	0.91/0.87	2.0		305	750×775×890	400×400
S11-M-63/10					0.15	1.09/1.04	1.9		350	780×780×910	400×400
S11-M-80/10					0.18	1.31/1.25	1.9		440	810×845×945	400×450
S11-M-100/10					0.2	1.58/1.5	1.8		495	820×865×960	400×450
S11-M-125/10					0.24	1.89/1.8	1.7		570	860×885×990	400×550
S11-M-160/10					0.28	2.31/2.2	1.6		640	1165×810×1010	550×550
S11-M-200/10					0.34	2.73/2.6	1.5		720	1215×855×1030	550×550
S11-M-250/10					0.4	3.2/3.05	1.4		855	1300×920×1060	550×650
S11-M-315/10					0.48	3.83/3.65	1.4		995	1370×965×1090	550×650
S11-M-400/10					0.57	4.52/4.3	1.3		1180	1405×990×1135	660×750
S11-M-500/10					0.68	5.41/5.15	1.2		1370	1485×1035×1190	660×750
S11-M-630/10					0.81	6.2	1.1	4.5	1650	1580×1060×1270	660×850
S11-M-800/10					0.98	7.5	1.0		2020	1675×1125×1345	660×850
S11-M-1000/10					1.15	10.3	1.0		2590	1780×1090×1615	820×850
S11-M-1250/10					1.36	12.0	0.9		3155	1860×1110×1960	820×850
S11-M-1600/10					1.64	14.5	0.8		3830	1950×1140×2065	820×900
S13-M-30/10					0.08	0.63/0.6	2.3	4.0	300	735×695×880	400×400
S13-M-50/10					0.1	0.91/0.87	2.0		360	750×775×910	400×400
S13-M-63/10					0.11	1.09/1.04	1.9		380	780×780×930	400×400
S13-M-80/10					0.13	1.31/1.25	1.9		470	820×845×965	400×450
S13-M-100/10					0.15	1.58/1.5	1.8		530	840×860×1000	400×450
S13-M-125/10					0.17	1.89/1.8	1.7		600	860×890×1020	400×550
S13-M-160/10					0.2	2.31/2.2	1.6		670	1165×820×1050	550×550
S13-M-200/10					0.24	2.73/2.6	1.5		725	1220×850×1060	550×550
S13-M-250/10					0.29	3.2/3.05	1.4		890	1300×920×1090	550×650
S13-M-315/10					0.34	3.83/3.65	1.4		1100	1370×920×1140	550×650
S13-M-400/10					0.41	4.52/4.3	1.3		1230	1370×940×1190	660×750
S13-M-500/10					0.48	5.41/5.15	1.2		1410	1500×1040×1250	660×750
S13-M-630/10					0.57	6.2	1.1	4.5	1650	1580×1080×1270	660×850
S13-M-800/10					0.7	7.5	1.0		2050	1675×1125×1370	660×850
S13-M-1000/10					0.83	10.3	1.0		2650	1780×1090×1640	820×850
S13-M-1250/10					0.97	12.0	0.9		3300	1860×1110×1690	820×850
S13-M-1600/10					1.17	14.5	0.8		3950	1950×1140×1780	820×900
