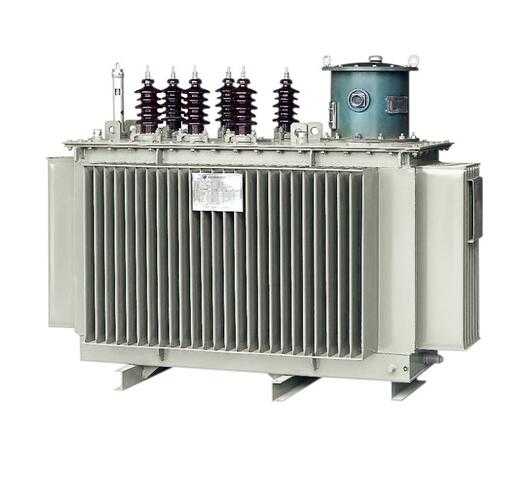

10kv on-Load Regulating Capacity and Voltage Power Transformer

On-load regulating capacity and voltage transformer has a size of two of rated capacity, according to the user with composite size by automatic volume regulating controller of automatic detection and judgment. Frequency Characteristics: Power Frequency; Brand: Zhebian; Origin: China.

Product Details Company Profile

Description

Application: Power, Electronic
Core: Core-type Transformer
Winding Type: Two-winding Transformer
Usage: Distribution Transformer
Shape of Core: EI
Trademark: ZHEBIAN

Phase: Three
Cooling Method: Oil-immersed Type Transformer
Certification: ISO9001-2000, ISO14001,Ohsas18001-2007
Frequency Characteristics: Power Frequency
Brand: Zhebian
Origin: China

1 Summary
On-load regulating capacity and voltage transformer has a size of two of rated capacity, according to the user with composite size by automatic volume regulating controller of automatic detection and judgment, through the special OLTC transformer, in power under the condition of two kinds of transformer capacity of automatic switching, realize the automatic adjustment of transformer the size of operation process, so as to realize the automatic conversion of two kinds of distribution transformer rated capacity operation mode, and automatic voltage according to the voltage change.

2 Technical Specification
2.1 Technical Specification of 10kV on-load regulating capacity and voltage transformer

Type	No-load Loss (kW)	load Loss (kW)	Short- circuit Impedance (%)	No-load Current (%)
S13-M·ZT-160(50)	200(100)	2310(870)	4.0	1.6(0.8)
S13-M·ZT-200(63)	240(110)	2730(1040)		1.5(0.7)
S13-M·ZT-250(80)	290(130)	3200(1250)		1.4(0.7)
S13-M·ZT-315(100)	340(150)	3830(1500)		1.4(0.7)
S13-M·ZT-400(125)	410(170)	4520(1800)		1.3(0.6)
S13-M·ZT-500(160)	480(200)	5410(2200)		1.2(0.6)
S13-M·ZT-630(200)	570(240)	6200(2600)	4.5	0.8(0.4)
Sample data is for reference only. The company reserves the right to change the data, and to accept special orders.
