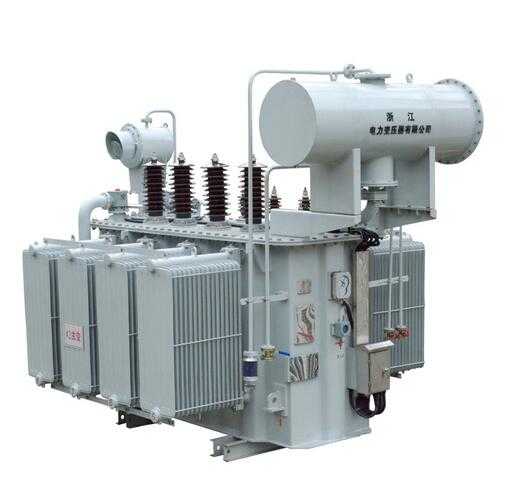

ISO14001 35kv Oil-Immersed Multi-winding Power Transformer
The company developed the 35kV transformer with the feature of low loss, low noise, high reliability, strong anti short circuit capacity and the no lifting the core, no leakage etc.
Usage: Power Transformer;
Shape of Core: EI;
Trademark: ZHEBIAN.
Description
- Application: Power, Electronic
- Core: Core-type Transformer
- Winding Type: Multi-winding Transformer
- Usage: Power Transformer
- Shape of Core: EI
- Trademark: ZHEBIAN
- Phase: Three
- Cooling Method: Oil-immersed Type Transformer
- Certification: ISO9001-2000, ISO14001,Ohsas18001-2007
- Frequency Characteristics: Power Frequency
- Brand: Zhebian
- Origin: China
1 Summary
The company developed the 35kV transformer with the feature of low loss, low noise, high reliability, strong anti short circuit capacity and the no lifting the core, no leakage etc.
2 Standards
IEC60076,GB1094,GB/T6451,GB311.1
3 Technical Specification
3.1 35kV 50kV•A~2500kV•A Three-phase double-winding non-excitation regulating distribution transformer
|
Rated
Power
(kV•A)
|
Voltage combination
and tapping range
|
Connection
symbol
|
No-load Loss
(kW)
|
load Loss
(kW)
|
No-load
Current
(%)
|
Short-
circuit
Impedance
(%)
|
|
HV
(kV)
|
Tapping
Range of HV
(%)
|
LV
(kV)
|
|
50
|
35
38.5
|
±2×2.5
±5
|
0.4
|
Dyn11
Yyn0
|
0.16
|
1.20/1.14
|
1.3
|
6.5
|
|
100
|
0.23
|
2.01/1.91
|
1.1
|
|
125
|
0.27
|
2.37/2.26
|
1.1
|
|
160
|
0.28
|
2.82/2.68
|
1.0
|
|
200
|
0.34
|
3.32/3.16
|
1.0
|
|
250
|
0.40
|
3.95/3.76
|
0.95
|
|
315
|
0.48
|
4.75/4.53
|
0.95
|
|
400
|
0.58
|
5.74/5.47
|
0.85
|
|
500
|
0.68
|
6.91/6.58
|
0.85
|
|
630
|
0.83
|
7.86
|
0.65
|
|
800
|
0.98
|
9.40
|
0.65
|
|
1000
|
1.15
|
11.5
|
0.65
|
|
1250
|
1.40
|
13.9
|
0.60
|
|
1600
|
1.59
|
16.6
|
0.60
|
|
2000
|
1.99
|
19.7
|
0.55
|
|
2500
|
2.36
|
23.2
|
0.55
|
3.2 35kV 630kV•A~31500kV•A Three-phase double-winding non-excitation regulating power transformer
|
Rated
Power
(kV•A)
|
Voltage combination
and tapping range
|
Connection
symbol
|
No-load Loss
(kW)
|
load Loss
(kW)
|
No-load
Current
(%)
|
Short-
circuit
Impedance
(%)
|
|
HV
(kV)
|
Tapping
Range of HV
(%)
|
LV
(kV)
|
|
630
|
35
|
±2×2.5
±5
|
3.15
6.3
10.5
|
Yd11
|
0.830
|
7.86
|
0.65
|
6.5
|
|
800
|
0.980
|
9.40
|
0.65
|
|
1000
|
1.15
|
11.5
|
0.65
|
|
1250
|
1.40
|
13.9
|
0.55
|
|
1600
|
1.69
|
16.6
|
0.45
|
|
2000
|
2.17
|
18.3
|
0.45
|
|
2500
|
2.56
|
19.6
|
0.45
|
|
3150
|
35
38.5
|
±2×2.5
±5
|
3.15
6.3
10.5
|
3.04
|
23.0
|
0.45
|
7.0
|
|
4000
|
3.61
|
27.3
|
0.45
|
|
5000
|
4.32
|
31.3
|
0.45
|
|
6300
|
5.24
|
35.0
|
0.45
|
8.0
|
|
8000
|
35
38.5
|
±2×2.5
|
3.15
6.3
10.5
|
YNd11
|
7.20
|
38.4
|
0.35
|
|
10000
|
8.70
|
45.3
|
0.35
|
|
12500
|
10.0
|
53.8
|
0.30
|
|
16000
|
12.1
|
65.8
|
0.30
|
|
20000
|
14.4
|
79.5
|
0.30
|
|
25000
|
17.0
|
94.0
|
0.25
|
10.0
|
|
31500
|
20.2
|
112
|
0.25
|
Sample data is for reference only. The company reserves the right to change the data, and to accept special orders.
